Explosion proof flexible tube

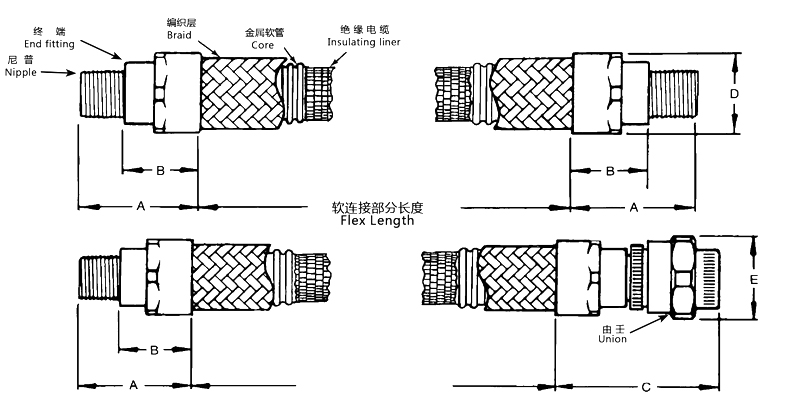

proof flexible connecting pipe explosion-proof electrical equipment as the inlet and outlet pipe connections or wiring bend more difficult place to connect purposes.Explosion-proof flexible pipe structure lived for metal threaded connectors on both ends of the hose, the tube body made of stainless steel woven metal hose and rubber hose steel wire of two kinds of forms.
Explosion-proof flexible connecting pipe is suitable for the combustible dust environment, 20, 21, 22 and Ⅱ Ⅱ C B level T1 - T6 group explosive mixture, as the outlet and inlet line of explosion-proof electrical equipment connection or bend steel pipe wiring connection with difficult places.
product feature
Explosion proof flexible tube flame resistance, corrosion resistance, water resistance, ageing resistance, good flexible, firm structure, reliable operation, etc.
When hoses used shows that tests such as pressure, temperature, fatique, vibration needed to provide fire safety of buildings were conducted by approval organization, product has the declared technical specifications and inspections are conducted periodically to check whether the production is according to approved specifications.
The applicable scope
Apply to 1 zone and 2 zone for the dangerous sites;
Suitable for Ⅱ, Ⅱ B class explosive gas environment;
Suitable for combustible dust 20, 21, 22 area;
Suitable for explosive gas mixing temperature: T1 ~ T4;

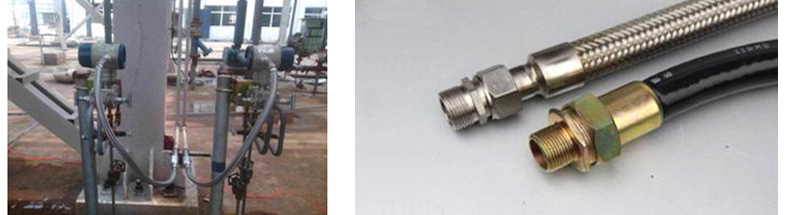

Widely used in petroleum, chemical industry, military industry and other dangerous environment and Marine oil platform, oil tankers and other dangerous places to work and scene lighting purposes;
Explosion-proof flexible connecting pipe conforms to GB3836-2000, IEC60079 standard request

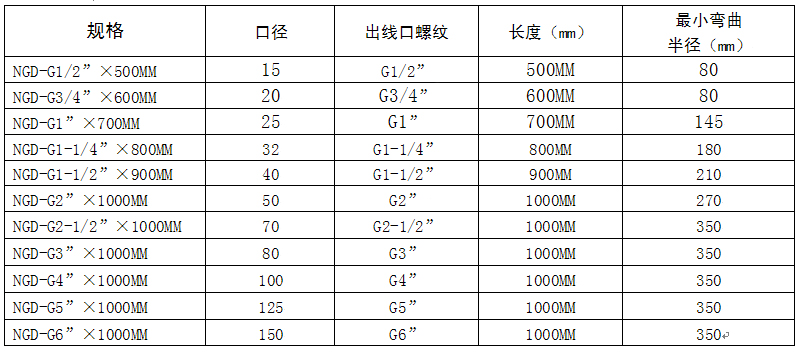

The flexible pipe length can be special customized according to user needs.
Can choose the NPT/BSPT/M metric thread both inside and outside.

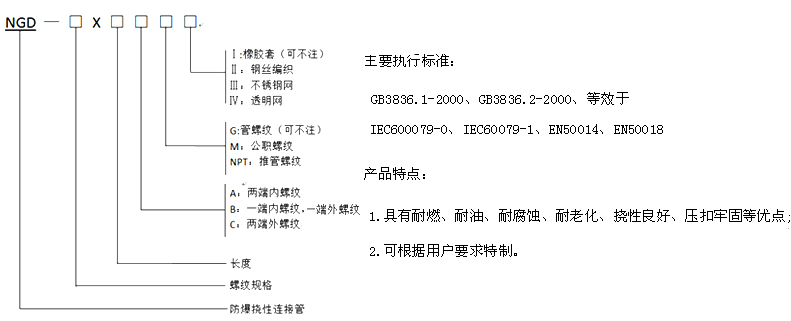

如：BNG-700×G3/4(F)/G1(M)
Such as: BNG - 700 x G3/4 (F)/G1 (M) significance for the length of 700, end of female G3/4, for the external thread at one end the G1 flexible connecting pipe.
"M" said outside the wire, "F" said silk
