release：Metal hose | Release time：2018/8/31 14:11:24
OBB
® Fire Sprinkler Connection Hoses
OBB
® sprinkler hose and connection adapter can be safely used in fire extinguishing systems, because of its structure is not being affected by the heat and pressure of seismic movement and braided tube, the most important thing is not dependent on the mounting line design. There use OBB
® shower hose and connection adapter installation of automatic sprinkler system many advantages. Sprinkler hose side can adjust the height of the vertical axis, the nozzle and the escutcheon can be adjusted relative to the ceiling. Very convenient and easy to install equipment to the ceiling with its connection adapter. Seismic motion safer sprinkler system and an adjustable minimum process time, OBB
® fire sprinkler hose products for the hydraulic design of wet or dry pipe sprinkler connection, and a direct connection to fire sprinklers.
OBB
® production hose sprinkler system is being used to obtain the relevant safety certification, each product according to the relevant standards. It showed tests, such as pressure, temperature, fatique, the need to provide building fire safety organization and implementation of vibration is approved, the product has a statement of the technical specifications and inspections are regularly inspected, whether produced in accordance with the approved specifications. Installation of sprinkler systems, when OBB
® shower hose and Connecton adapter is designed to solve problems that may arise experience. They offer include bolts, so the easiest, fastest installation below ceiling system. OBB
® flexible shower hose connections reduce the possibility of degradation caused by seismic movement. This is a very important safety system can work without problems.

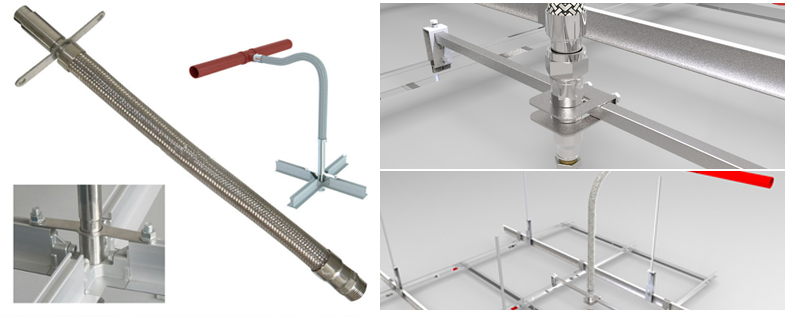

Braided Stainless Steel Flexible Sprinkler Hoses with Fittings
Model Name：: OH-25F
Description: DN 25 Braided
Application: Clean Room
Working Pressure: 200 psi (1380 kPa)
Length: 700mm, 1000mm, 1200mm, 1500mm, 1800mm
Minimum Bending Radius:175mm (7 in.)
Sprinkler Reducer Size: 1/2” NPT/BSPT/RP
Nipple Size: 1” NPT/BSPT
Hose Material: SUS304
Can be used with most common ceiling grids used in clean room application on the market.

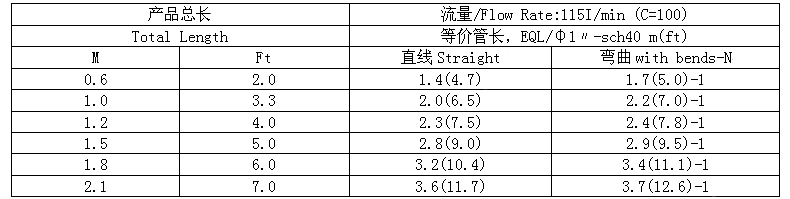

NOTE：N:90 NO.of 900 bend
Features of the Sprinkler Hose
1.Pressure capabilities：
Rated working pressure：12.3kg/cm2,175psi
Hydrostatic pressure：49.3kg/cm2,700psi
Burst pressure：98.5kg/cm2,1400psi
2.Quality&Security of products
a.
One piece style and stainless steel structure.leakage test in the shop.Require no painting or epoxy coating.
b.
Good flexibility and floating fixing plate structure reduce the risks of ceiling deformations and pipe cracks caused by the earthquake or the structural offset effectively.
3.Installation with security
a.
Construction with screws.Provide builders with security.
b.
Keep the factory or working site clean during installation.Require no dpwntime for routine inspection and replacement.Accelerate the clean room rumming effectively.
